EL-600
LED Lights

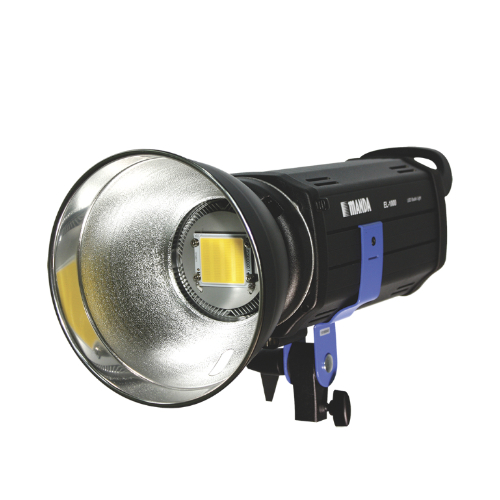

EL-1000
LED Lights

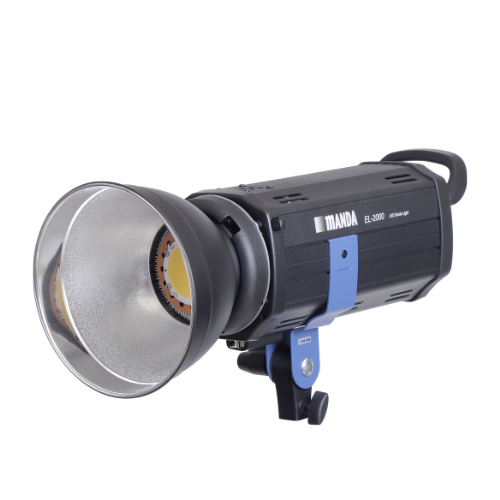

EL-2000
LED Lights
| Model | Output | Power | CRI | Illumination | Color temperature | Size (mm) |
Weight (kg) |
|---|---|---|---|---|---|---|---|
| EL-600 EL-600L EL-600B |
60W |
AC 90-240V, 50/60Hz AC 90-240V, 50/60Hz AC 90-240V, 50/60Hz Li-ion battery 37V, 4mAh |
85% |
6,000Lm 5,000Lm 6,000Lm |
5,500K 3,200K 5,500K |
136 x 127 x 100 |
1.5 |
| EL-1000 EL-1000N EL-1000NL EL-1000NB |
100W |
AC 90-240V, 50/60Hz AC 90-240V, 50/60Hz AC 90-240V, 50/60Hz AC 90-240V, 50/60Hz V-mount plate only |
95% |
10,000Lm 10,000Lm 8,000Lm 10,000Lm |
5,500K 5,500K 3,200K 5,500K |
390 x 140 x 200 |
2.1 |
| EL-2000 | 200W | AC 90-240V, 50/60Hz | 95% | 14,000Lm | 5,500K | 390 x 140 x 200 | 3.0 |

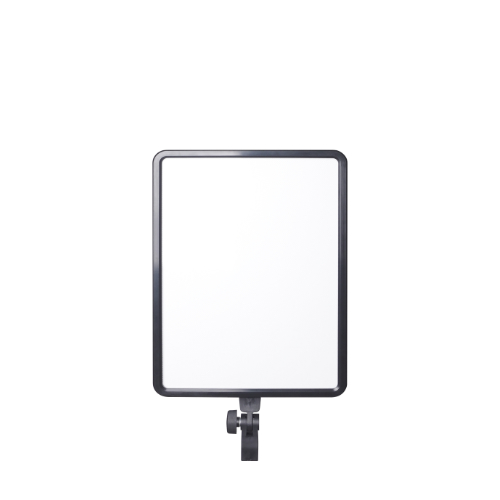

Vpad-350
LED Lights

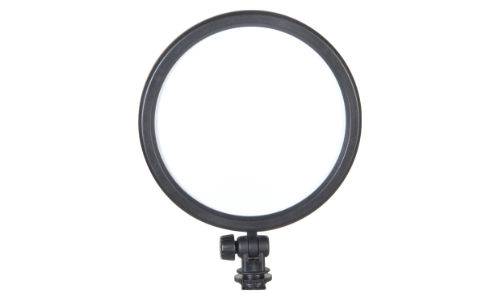

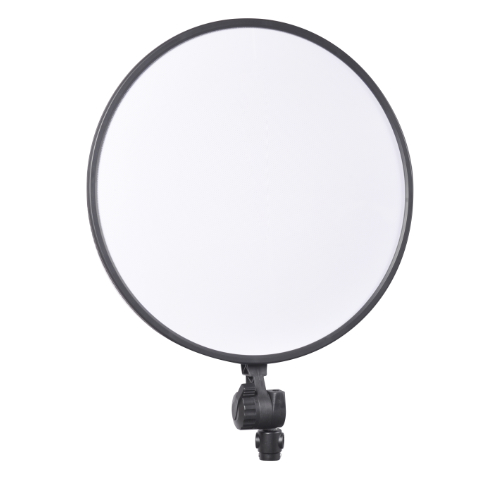

Rpad-450
LED Lights

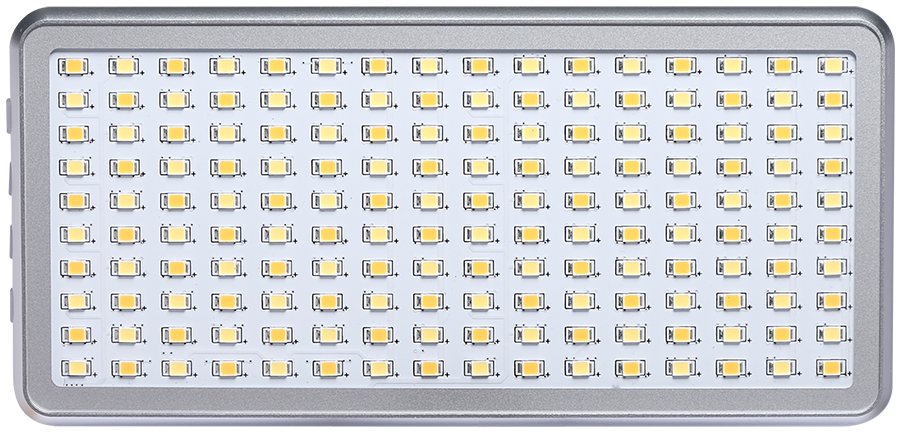

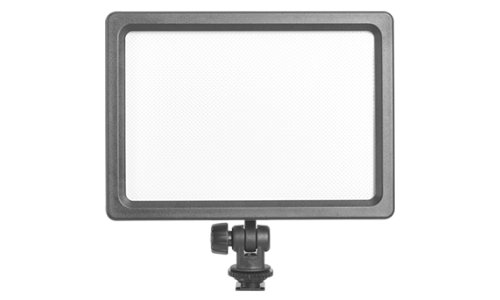

Vpad-112
LED Lights

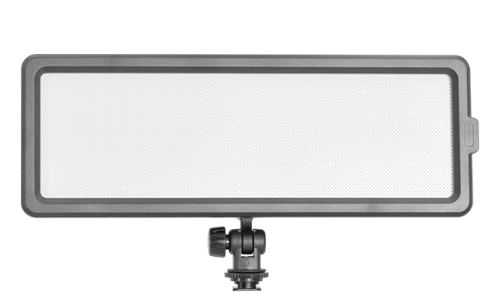

Vpad-150
LED Lights
Rpad-112
LED Lights
| Model | LED | Output | Power | CRI | Color temperature | Size (mm) |
Weight (kg) |
|---|---|---|---|---|---|---|---|
| V-pad Vpad-112 V-pad-150 V-pad350 V-pad-350D |
112 144 350 350 |
12W 15W 45W 45W |
NP-F NP-F NP-F/AC NP-F/AC |
95% | 3,200-5,600K (bi-color) 3,200-5,600K (bi-color) 5,600K 3,200-5,600K (bi-color) |
175 x 167 x 27 288 x 148 x 28 250 x 350 250 x 350 |
0.25 0.36 1.1 1.1 |
| R-pad Rpad-112 R-pad-450 R-pad450V R-pad-450D R-pad-450D |
112 256 256 256 256 |
12W 75W 75W 75W 75W |
NP-F NP-F/AC NP-F/AC/V-lock NP-F/AC NP-F/AC/V-lock |
95% | 3,200-5,600K (bi-color) 5,600K 5,600K 3,200-5,600K (bi-color) 3,200-5,600K (bi-color) |
ø160 x 28 ø450 x 55 ø450 x 55 ø450 x 55 ø450 x 55 |
0.27 2.0 2.0 2.0 2.0 |

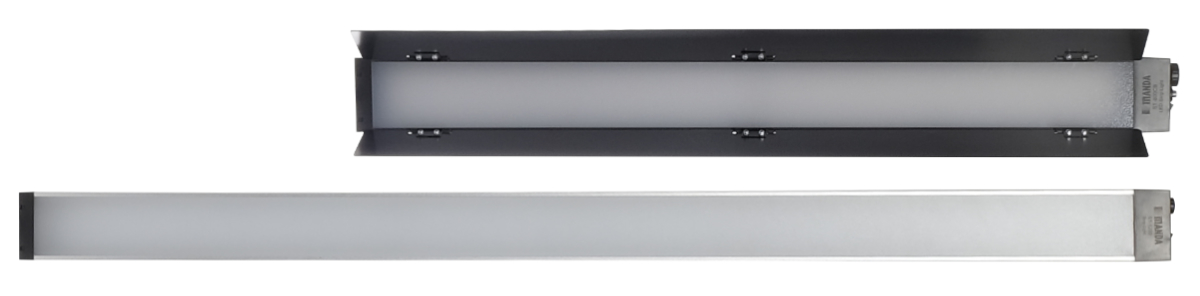

ST-800/ST-800C
LED Strip Lights
ST-1200/ST-1200C
LED Strip Lights
| Model | Output | Power | CRI | Illumination@1m | Color temperature |
Size (mm) |
Weight (kg) |
|---|---|---|---|---|---|---|---|
| Strip LEDs ST-800 ST-800C ST-1200 ST-1200C |
55W 40W 70W 55W |
15V/4A 15V/3A 15V/5A 15V/4A |
95% |
1,100Lx 520Lx 1,300Lx 1,040Lx |
5,500K |
75 x 46 x 855 75 x 46 x 855 75 x 46 x 1,245 75 x 46 x 1,245 |
1.6 1.6 2.3 2.3 |

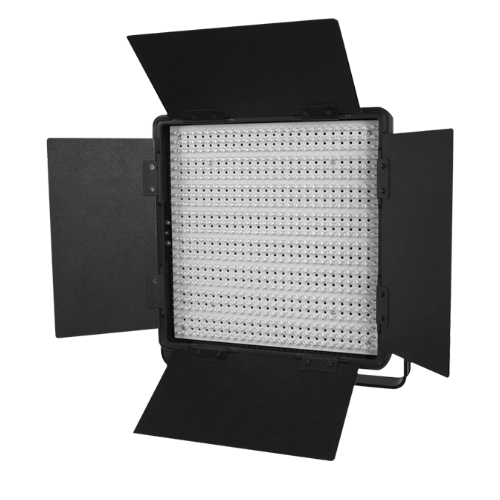

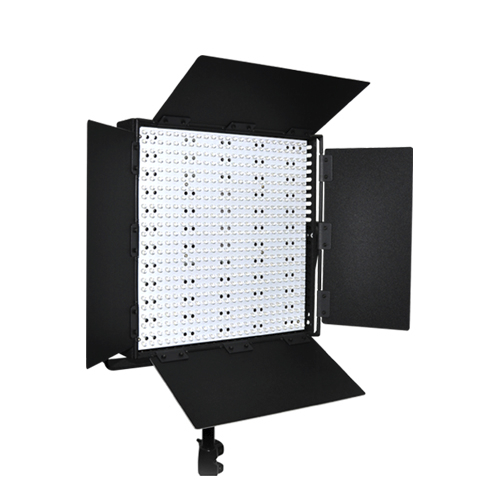

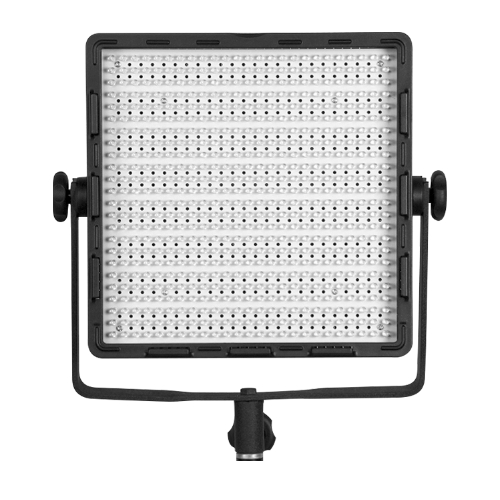

CN-HS Series
Aluminium housing LED panels with barn doors
CN-SD Series
Plastic housing LED panels without barn doors
CN-SA Series
Plastic housing LED panels with barn doors
| Model | LED | Output | Power | Color temperature | Size (mm) |
Weight (kg) |
|---|---|---|---|---|---|---|
| CN-HS CN-600HS CN-900HS CN-1200HS |
600 900 1200 |
30W 54W 72W |
AC90-240V, 50/60Hz / V-lock |
3,200-5,600K (bi-color) |
390 x 360 x 80 417 x 393 x 80 460 x 390 x 75 |
2.2 2.5 2.7 |
| CN-SD CN-600SD CN-600CSD |
600 |
36W |
AC90-240V, 50/60Hz / V-lock |
3,200 / 5,600K 3,200-5,600K (bi-color) |
340 x 380 x 73 |
1.5 |
| CN-SA CN-600SA CN-600CSA |
600 |
36W |
AC90-240V, 50/60Hz / V-lock |
3,200 / 5,600K 3,200-5,600K (bi-color) |
340 x 370 x 80 |
1.8 |

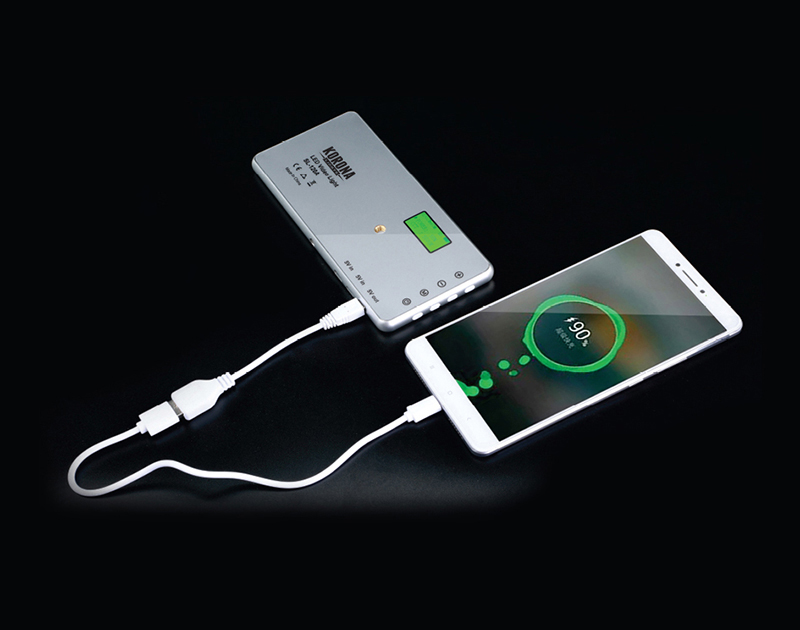

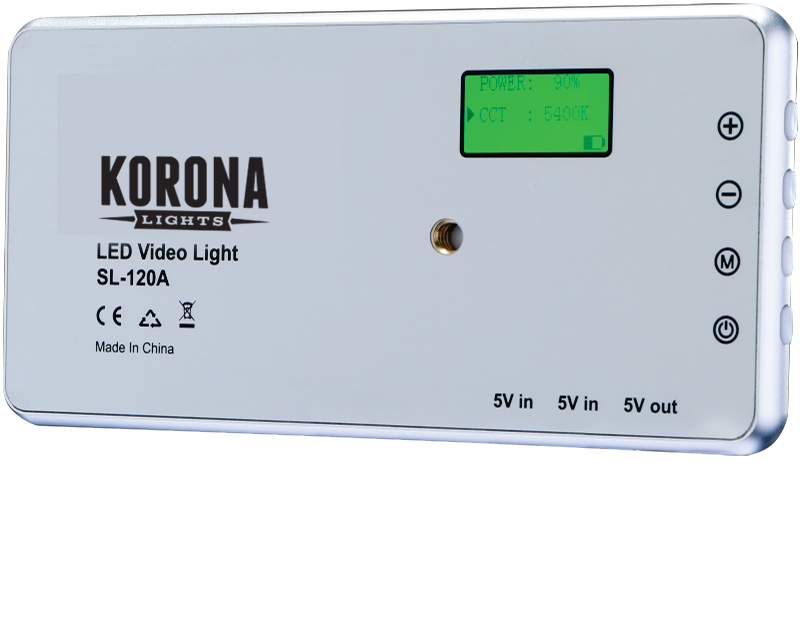

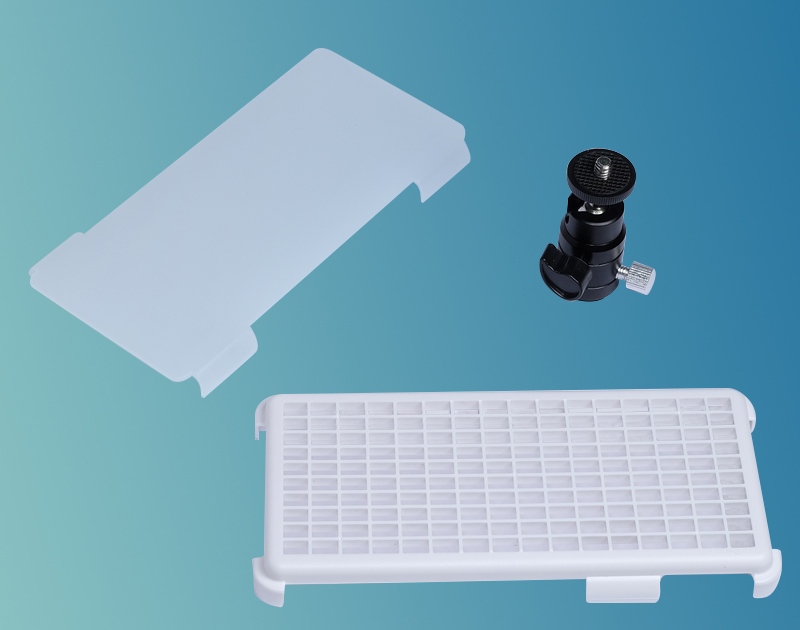

LED Light+Smartphone Charger SL-120A
Compact, thin, light. Dual function – light for video/photo; power bank for mobile phone charging
Power: DC 3.7V - 4000mAh
Power bank/USB charging:
DC 5V-1000mAh / Micro USB, Type-C
Bi-color: 3200K-6500K
CRI: >96
Illumination: 1300Lm
Size: 16.8 x 8.0 x 1.1 cm
Weight: 0.5 kg

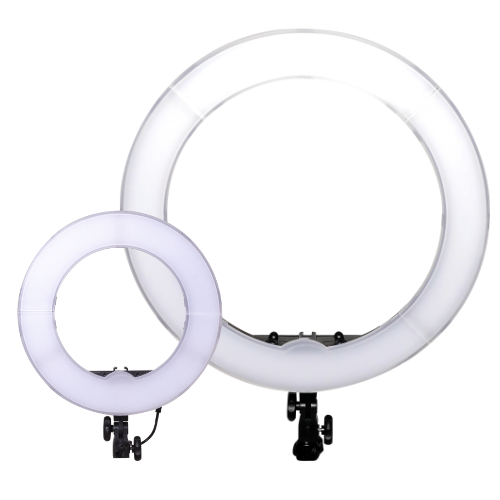

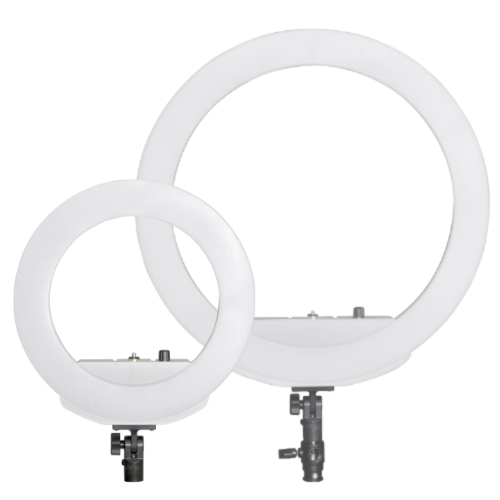

RL-12/RL18
LED Ring Light

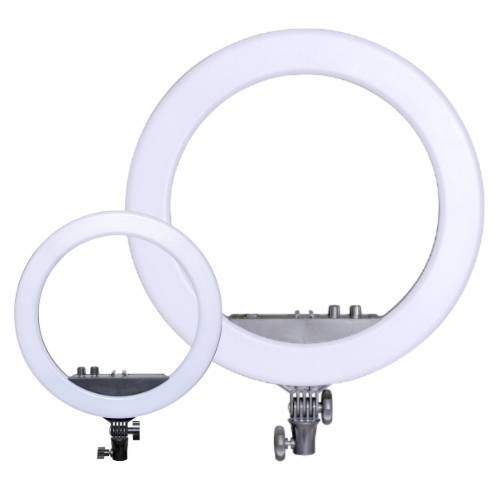

RL-12 II/RL-18 II
LED Ring Light
KR-12/KR-18
LED Ring Light
| Model | Output | Power | CRI | Color temperature | Size (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| RL-12 RL-12 II |
42W 28W |
120V-220V, 50/60Hz |
85% 96% |
5,500K 3,200-5,600K (bi-color) |
Outer: ø345 / Inner: ø225 Outer: ø345 / Inner: ø265 |
1.2 0.8 |
| RL-18 RL-18 II |
55W | 120V-220V, 50/60Hz |
85% 96% |
5,500K 3,200-5,600K (bi-color) |
Outer: ø485 / Inner: ø365 Outer: ø445 / Inner: ø330 |
1.6 1.2 |
| KR-12 KR-18 |
24W 48W |
120V-220V, 50/60Hz |
96% | 5,500K 3,200-5,600K (bi-color) |
Outer: ø305 / Inner: ø215 Outer: ø458 / Inner: ø368 |
0.5 0.76 |
